동축케이블

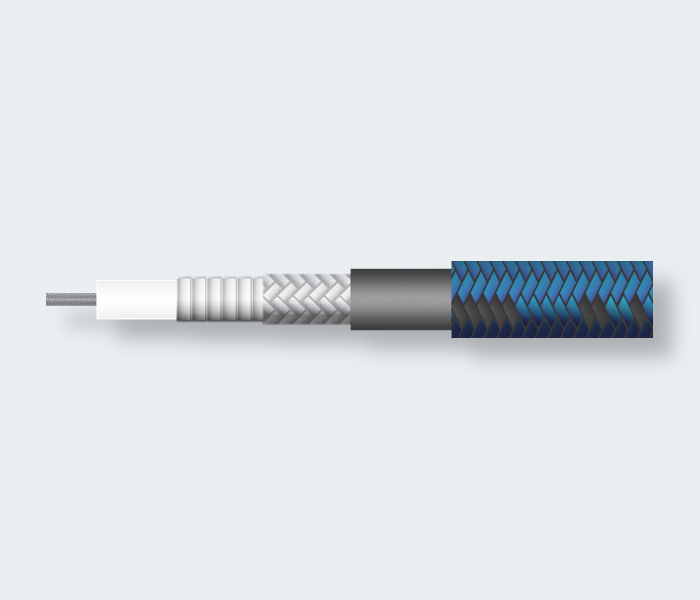

OCT26G for 26.5GHz

디자인특징
  • Good Stability by Precision Core Technology
  • High Shielding Effectiveness
  • max. VSWR <1.2:1 @ 26.5 GHz
  • Cost Effectiveness & Loss Insertion Loss
  • Lower Dielectric constant core by LD PTFE
  • Minimal Phase Change at Temp. and Bending
제품문의목록으로
Electrical Specification
Operating FrequencyDC to 26 GHz
Impedance50±1 Ω
Velocity of Propagation77%
RF leakage-100 dB
I/L Stability vs. Bending± 0.1dB /m @ 26.5GHz
Phase Stability vs. BendingMax. 6 º @ 26.5GHz
ㅤ
Mechanical Specifications
Center ConductorSilver Plated Copper
Dielectric MaterialPTFE
Jacket / Out DiameterTeflon fiber / 6.80mm ±0.1
Temperature Range-50 ~ +135 ℃
Weight [g/m]82
Minimum Bend Radius30 mm/1.18 inch
Matched Connector3.5mm/SMA/N
