동축케이블

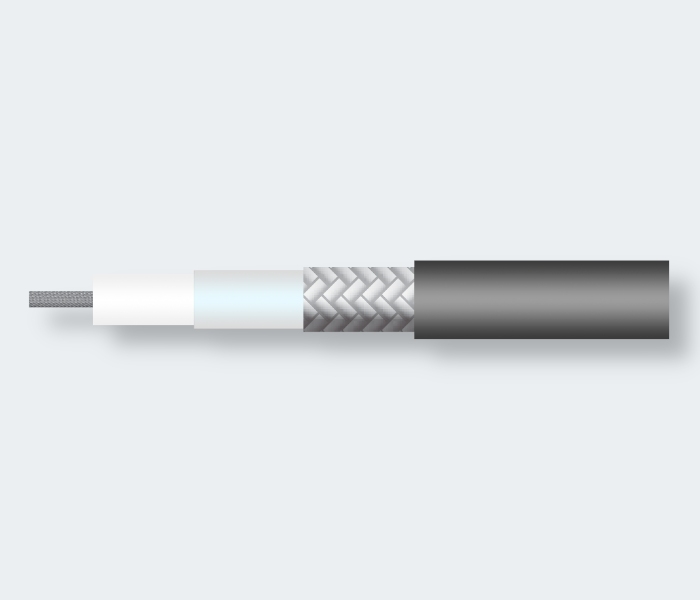

OCS405D for 18GHz

디자인특징
  • Good Installation at Flexible Application
  • Good Shielding Effectiveness < – 90dB
  • nom. VSWR <1.20:1 @ 18 GHz (2 SMA male conn.)
  • Cost Effectiveness Standard Cable
  • Optimized for mass production
  • Max. operating freq. up to 40GHz (with 2.92 conn.)
제품문의목록으로
Electrical Specification
Operating FrequencyDC to 18 GHz
Impedance50±1 Ω
Velocity of Propagation70%
RF leakage-90 dB
I/L Stability vs. Bending± 0.2dB /m @ 18GHz
Phase Stability vs. BendingMax. 12 º @ 18GHz
ㅤ

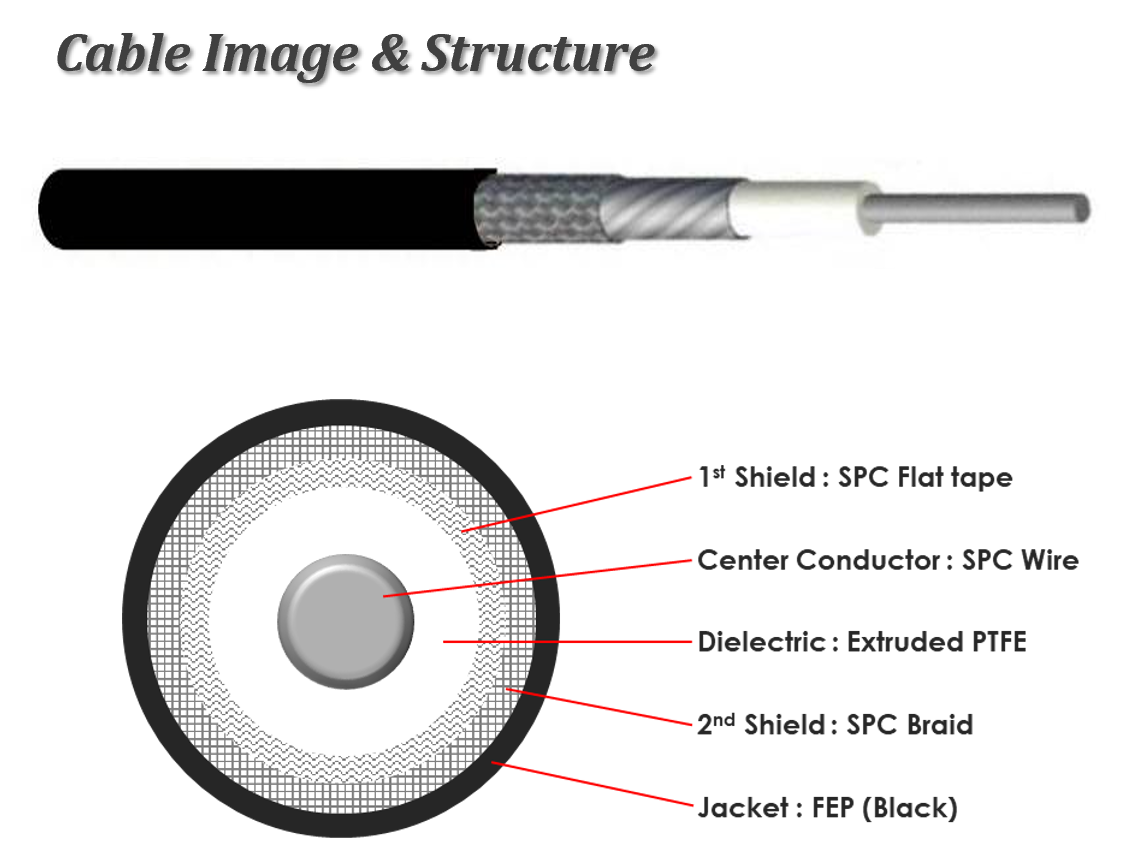

Mechanical Specifications
Center ConductorSilver Plated Copper
Dielectric MaterialLD PTFE
Jacket / Out DiameterResin(BLK) / 3.20mm
Temperature Range-50 ~ +130 ℃
Weight [g/m]20
Minimum Bend Radius20mm (Max.)
Matched ConnectorSMA / N / 2.92mm
Max. Insertion Loss dB/m & Power Handling (W) @ 25℃ sea level
Frequency [GHz] Insertion LossPower Handing
0.50.45 dB120 Watts
10.74 dB
105 Watts
31.21 dB75 Watts
61.78 dB55 Watts
102.58 dB40 Watts
183.45 dB20 Watts
