메모리 모듈 소켓

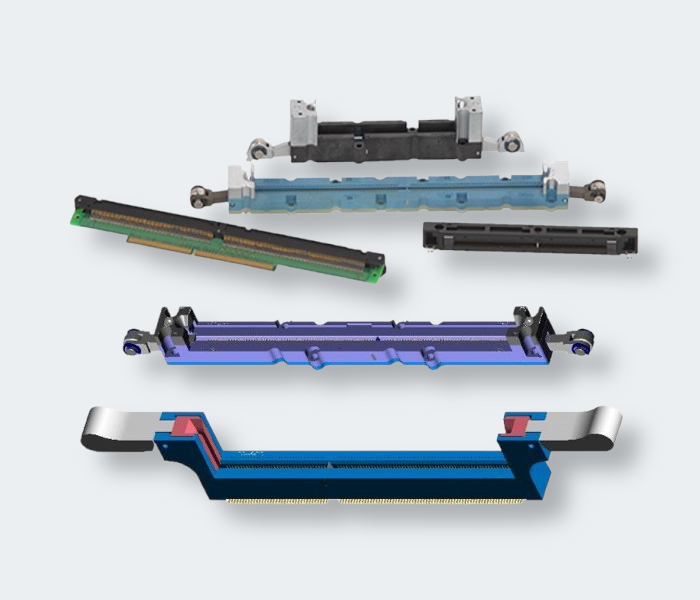

Memory Module Test Socket
- Various products are available per module component designs and outlines for DDR3,DDR4 & DDR5
- Short contact provides short electrical path, which will introduce better electrical performances.
- Contacts are designed to work individually to improve warped module handling.
- Longer life time or insertion is proven, which is eventually driven for low testing cost.
- Stable mechanical reliability found even at cold test.
- Easy & simple loading & unloading of module components
- Both electrical final test and system level test are supported
디자인특징
– Excellent SI(Signal Integrity) property with short electrical path
– Loading & unloading modules easily

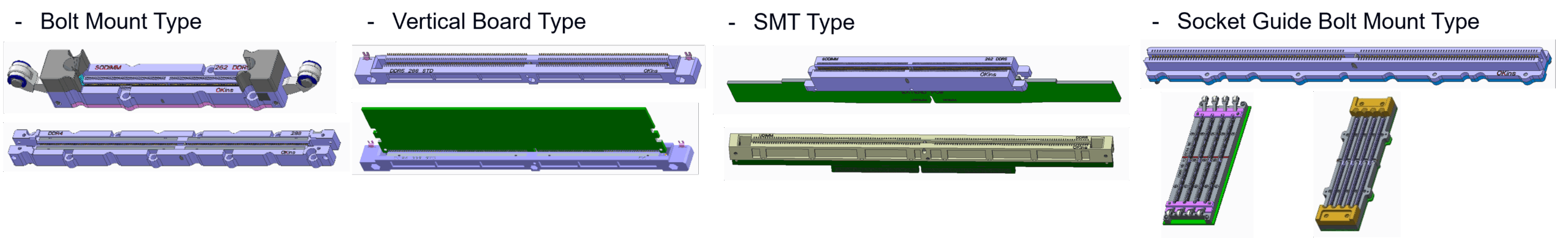

| Test Type | Products | Socket Type | Part No |
|---|---|---|---|
| Electric Test (Auto Handler) | RDIMM | Bolt Mount | MS262C83A-154 |
| UDIMM | MS288C84A-142 | ||
| SODIMM | MS288C84A-125 | ||
| Electric Test (C-Tray Handler) | RDIMM | MS288C84A-143 | |
| UDIMM | MS288C84A-123 | ||
| SODIMM | MS262C83A-151 | ||
| Application Test (Auto Handler & Manual Test) | RDIMM | Vertical Board SMT | MS288C64A-157 (STD) / MS288C64A-158 (RVS) |
| UDIMM | MS288C64A-159 (STD) / MS288C64A-160 (RVS) |
||
| SODIMM | MS262F83M-162 (STD) / MS262F83M-163 (RVS) | ||
| Application Test (Extend Converter) | UDIMM to SODIMM | SMT | MS262D83M-161 |
| SODIMM to UDIMM | MS288F84M-164 |
||
| Application Test Inline Auto | RDIMM, UDIMM | Socket Guide Bolt mount | MS288C64A-148,149 |
LPDDR5 LPCAMM
- LPCAMM is an LPDDR package-based module product
- LPDDR(Low Power Double Data Rate)
- Compared to existing DDR-based So-DIMMs, technological innovation has been achieved
- in terms of performance, low power, and design efficiency
